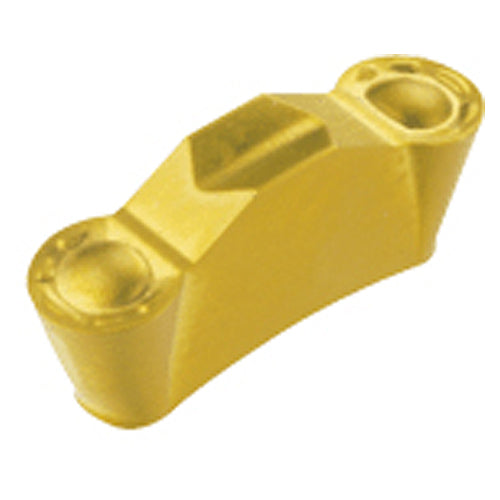

TGMF 420 IC428
Item #: EH676459014
Brand: Iscar
Model #: 6459014
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.157″ |
| Shape | 90° Rectangular |
| Corner Radius (RE) | 0.079″ |
| Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 0.587″ |
| Application | | Ext. Grooving | Ext. Profiling | Int. Grooving | Int. Profiling | |
| Insert Length (INSL) | 0.701″ |
| Applicable Material | | Steel | Cast Iron | Hard Materials | |
| Minimum Bore Diameter (DMIN) | 0.807″ |
| Cutting Position | External |
| Feed | 0.0134 inch/rev |
| Measurement Type | Inch |
| Coating | TiC+Al2O3 |
| Tool Type | Groove-Turn Utility Inserts |
| Grade | IC428 |
| Body Material | Carbide |
