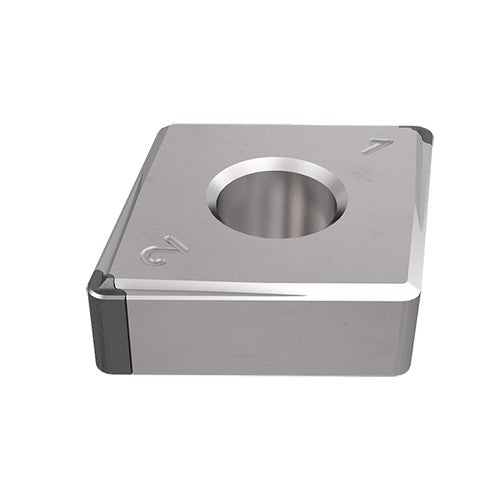

CNGG 432-M4HM-J IB22HC
Item #: EH686769788
Brand: Iscar
Model #: 6769788
| Product Specifications | |
|---|---|
| Application | | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 95° Approach | ISO Turning Inserts | |
| Tool Type | Turn Negative Inserts |
| Insert Style | CNGG |
| Fixing Hole Diameter (D1) | 0.203″ |
| Corner Radius (RE) | 0.0315″ |
| Min D.O.C. | 0.005″ |
| Insert Size | 432 |
| Depth of Cut Maximum (APMX) | 0.031″ |
| Cutting Edge Length (L) | 0.508″ |
| Min. Turning Feed (ft(min)) | 0.0039 ″/rev |
| Insert Thickness (S) | 0.187″ |
| Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Measurement Type | Inch |
| Grade | IB22HC |
| Body Material | Carbide |
