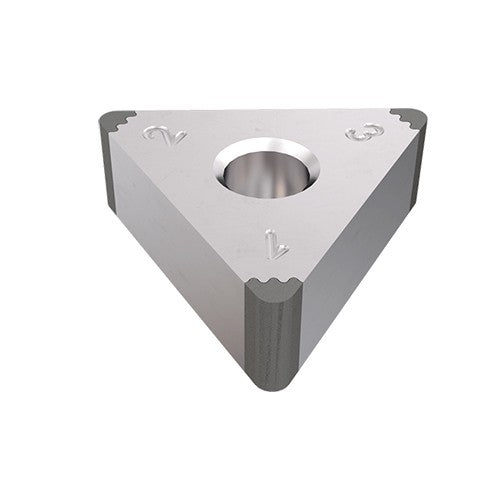

TNGA 332-R6-J IB22HC
Item #: EH686776234
Brand: Iscar
Model #: 6776234
| Product Specifications | |
|---|---|
| Application | | Ext. 60° Triang.93° Appr. Open | Ext. 60° Triangle 60° Approach | Ext. 60° Triangle 91° Approach | Ext. 60° Triangle Facing | Int. 60° Triangle 91° Approach | Int. 60° Triangle 95° Approach | ISO Turning Inserts | |
| Tool Type | Turn Ultra hard Inserts |
| Insert Style | TNGA |
| Fixing Hole Diameter (D1) | 0.15″ |
| Corner Radius (RE) | 0.0315″ |
| Min D.O.C. | 0.005″ |
| Insert Size | 332 |
| Depth of Cut Maximum (APMX) | 0.031″ |
| Cutting Edge Length (L) | 0.65″ |
| Min. Turning Feed (ft(min)) | 0.0039 ″/rev |
| Insert Thickness (S) | 0.187″ |
| Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Measurement Type | Inch |
| Grade | IB22HC |
| Body Material | Carbide |
