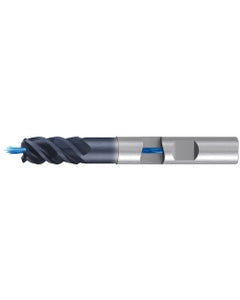

Corner Radius End Mill; 10 mm Dia. × 22 mm LOC × 10 mm Shank Dia. × 80 mm OAL ; 4 FL ; Carbide ; AlTiN ; 1.2 mm R ; Series Jet-Cut
Item #: ER4519866
Brand: EMUGE-FRANKEN
Model #: 2613AZ.010
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 10 mm |
| Flute Count (NOF) | 4 |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Shank Type | Weldon |
| Depth of Cut Maximum (APMX) | 22 mm |
| End Shape | Corner Radius |
| Overall Length (OAL) | 80 mm |
| Applicable Material | | Steel | Cast Iron | Hard Materials | |
| Cutting Edge Material | Carbide |
| Series/List # | Jet-Cut |
| Coating | AlTiN |
| Corner Radius (RE) / Chamfer Width (CHW) | 1.2 mm |
