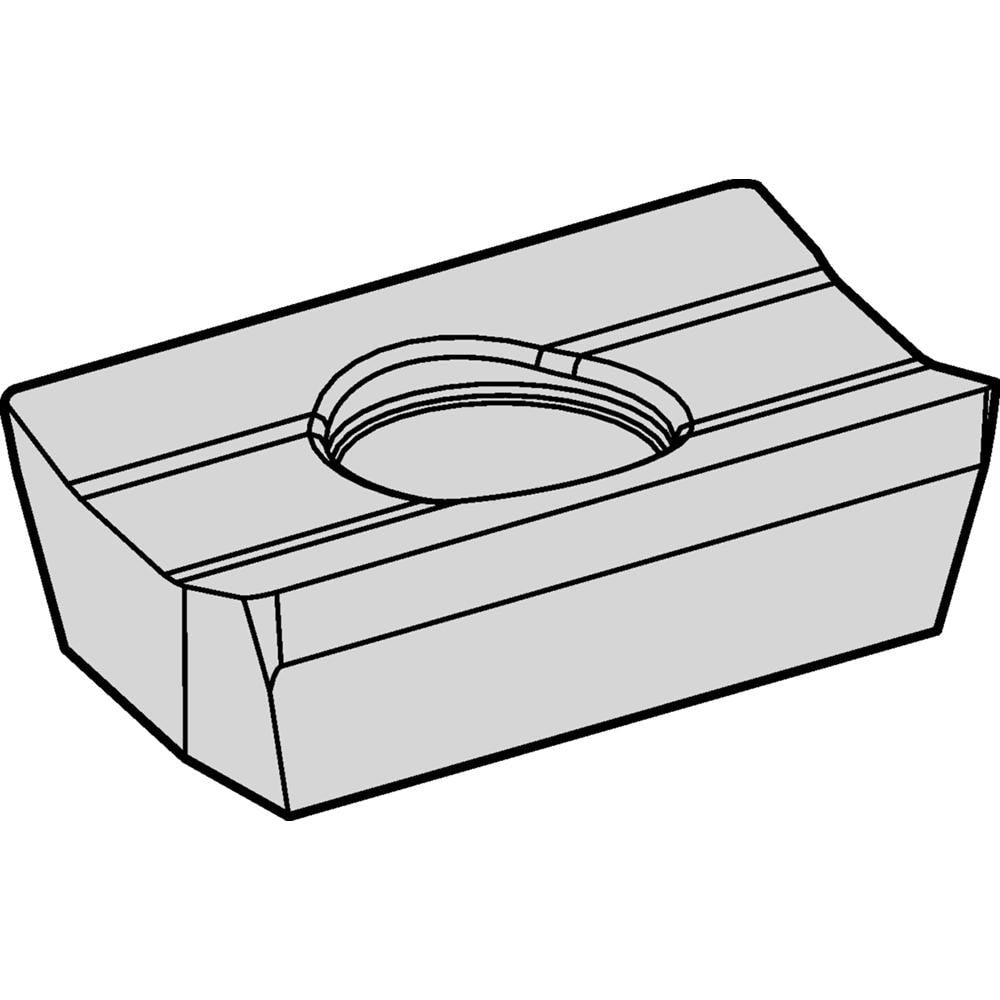

Brand: Widia / Part #: 6843994

Brand: Widia / Part #: 6843994


Item #: 94064219
Brand: Widia
Model #: 6843994

Product Specifications

Insert Style XPHT
Insert Size Code 1604
Insert Size 33
Insert Material Carbide
Width (Inch) 3/8
Manufacturer Grade WP35CM
Length (Inch) 5/8
Thickness (Inch) 3/16
Inscribed Circle (Inch) 3/8
Inscribed Circle (Decimal Inch) 0.3750
Corner Radius (Decimal Inch) 0.0781
Corner Radius (Inch) 5/64
Insert Hand Right Hand
Relief Angle 11.000
Series M680
Coating Process CVD
Hole Diameter (Decimal Inch) 0.1748
Maximum Depth of Cut (Decimal Inch) 0.6169
Number Of Cutting Edges 2
Insert Shape Parallelogram
Rake Positive
Primary Workpiece Material Stainless Steel; Cast Iron; Steel
Primary Workpiece Material Code P; K; M
Secondary Workpiece Material Super-alloys & Titanium
Secondary Workpiece Material Code S
Ansi Code XPHT335
Iso Code XPHT160420
Manufacturers Catalog Number XPHT335
Cutter Series Compatibility M680 XP1604 IN
Chip Breaker None
Cutting Direction Right Hand
Material Application High-Temperature Alloy; Stainless Steel; Steel
Shape Parallelogram
Insert Holding Method Screw
Coating Classification CVD
Single or Double Sided Insert Single
Coating/Finish TiCN; TiN; Al2O3
Included Angle Degree 80
Width (Decimal Inch - 4 Decimals) 0.3750
Thickness (Decimal Inch - 4 Decimals) 0.1875
Multi-Use Tool Yes
Length (Decimal Inch - 4 Decimals) 0.6250
$ 20.90
