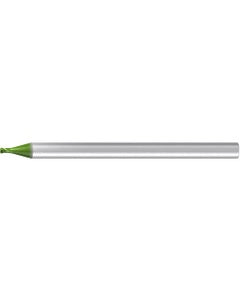

Torus End Mill; 0.5 mm Dia. × 0.3 mm LOC × 3 mm Shank Dia. × 50 mm OAL ; 2 FL ; Carbide ; AlCr ; 0.1 mm R ; Series Micro
Item #: ER452783L0005
Brand: EMUGE-FRANKEN
Model #: 2783L.0005
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.5 mm |
| Flute Count (NOF) | 2 |
| Connection Diameter Machine Side (DCONMS) | 3 mm |
| Shank Type | Round |
| Depth of Cut Maximum (APMX) | 0.3 mm |
| End Shape | Torus |
| Overall Length (OAL) | 50 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Aluminum / Non-Ferrous Materials | |
| Cutting Edge Material | Carbide |
| Series/List # | Micro |
| Coating | AlCr |
| Corner Radius (RE) / Chamfer Width (CHW) | 0.1 mm |
