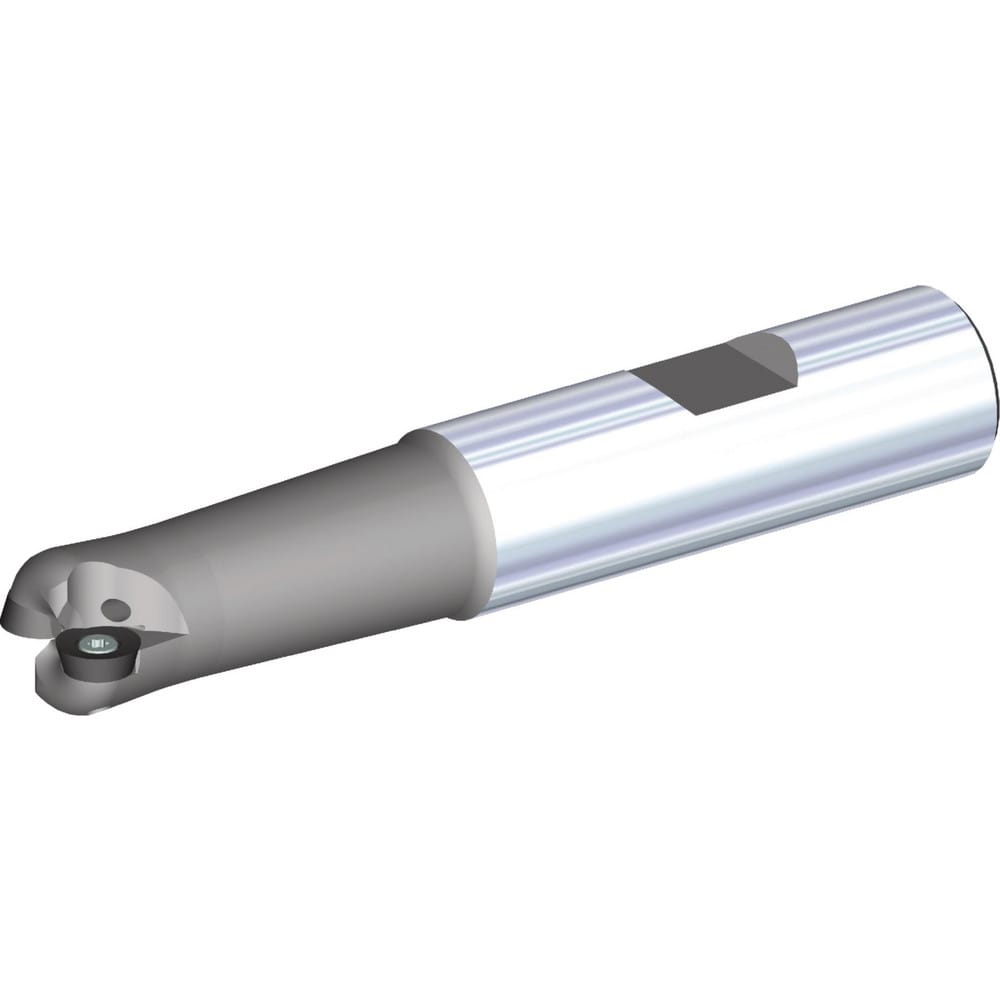

Brand: Widia / Part #: 3940703

Brand: Widia / Part #: 3940703


Item #: 99734436
Brand: Widia
Model #: 3940703

Product Specifications

Minimum Cutting Diameter (mm) 10.00
Maximum Cutting Diameter (mm) 20.00
Maximum Depth of Cut (mm) 5.00
Toolholder Style M170
Shank Type Weldon Flat
Shank Diameter 0.7874
Maximum Ramping Angle 20
Compatible Insert Style RD.X
Insert Holding Method Screw
Compatible Insert Size Code 1003..
Number Of Cutter Inserts 2
Overall Length (mm) 110.0000
Series M170
Flute Type Straight
Maximum Rpm 15900.000
Shank Length (mm) 70.000
Functional Length (mm) 110.00
Head Length (mm) 40.00
Insert Diameter (mm) 10.000
Tool Application Pocketing; Milling; Ramping; Slotting
Tool Performance General Purpose
Primary Workpiece Material Hard Material; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; H; K; M
Number Of Flutes 2
Coolant Through Yes
$ 247.61
