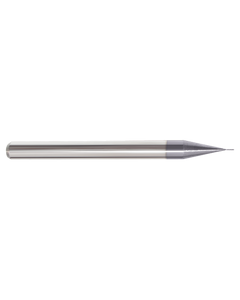

.120-4FL-SE-STUB-.010R AlTiN
Item #: MW212506412010B
Brand: Monster Tool Company
Model #: 250-6412010B
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.12″ |
| Application | | Profiling | Rampdown | Profile Cutting | Radiusing | Radius Slotting | |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Corner Radius (RE) | 0.01″ |
| Depth of Cut Maximum (APMX) | 0.18″ |
| Grade | C-2 Sub-Micron |
| Overall Length (OAL) | 1-1/2″ |
| Length Group | Stub |
| Cutting Edge Material | Solid Tungsten Carbide |
| Decimal Equivalent | 0.12″ |
| Coating | AlTiN |
| Series/List # | 250 |
| Flute Count (NOF) | 4 |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees |
| Single / Double End | Single End |
| End Shape | Corner Radius |
| Center Cutting | Yes |
| Applicable Material | | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
