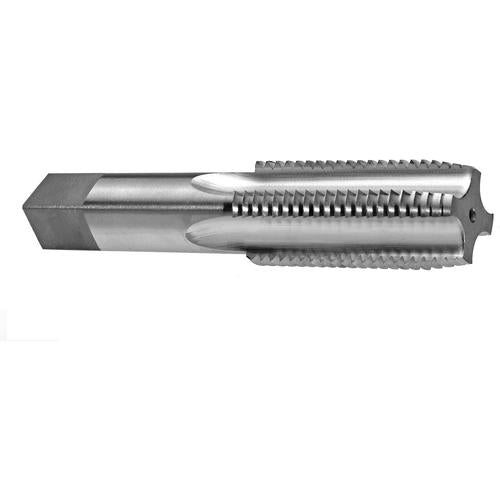

7/16-20 4FL H-5 PLUG TAPS 103
Item #: EP4025952
Brand: Reiff & Nestor
Model #: 25952
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 7/16″ |
| Chamfer | Plug |
| Threads per Inch (TPI) | 20 |
| Coating | Bright |
| Thread Standard | NF |
| Drive Size (DRVS) | 0.242″ |
| Overall Length (OAL) | 3-5/32″ |
| Flute Type | Straight Flute |
| Thread Cutting Part Length (THL) | 1-7/16″ |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 0.242″ |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 |
| Square Size | 1-7/16″ × 0.242″ |
| Flute Helix Angle (FHA) | 0 Degrees |
| Standard Pack Size | 12 |
| Cutting Edge Material | HSS |
| Series/List # | 103 |
| Thread Tolerance Class (TCTR) | H5 |
| Thread Size | 7/16″ - 20 |
| Tool Type | Hand Tap |
