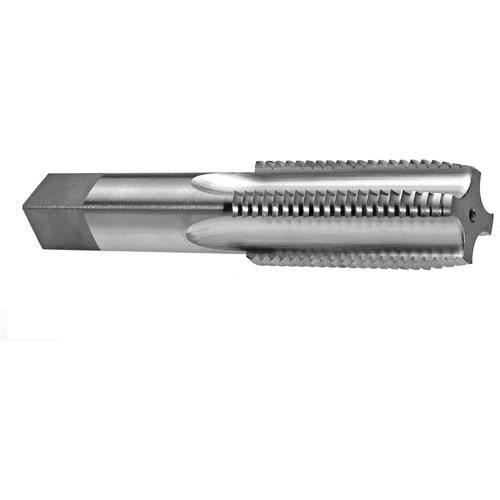

7/8-14 4FL H-1 TAPER TAPS 103
Item #: EP4027311
Brand: Reiff & Nestor
Model #: 27311
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 7/8″ |
| Chamfer | Taper |
| Threads per Inch (TPI) | 14 |
| Coating | Bright |
| Thread Standard | NF |
| Drive Size (DRVS) | 0.523″ |
| Overall Length (OAL) | 4-11/16″ |
| Flute Type | Straight Flute |
| Thread Cutting Part Length (THL) | 2-7/32″ |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 0.523″ |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 |
| Square Size | 2-7/32″ × 0.523″ |
| Flute Helix Angle (FHA) | 0 Degrees |
| Standard Pack Size | 3 |
| Cutting Edge Material | HSS |
| Series/List # | 103 |
| Thread Tolerance Class (TCTR) | H1 |
| Thread Size | 7/8″ - 14 |
| Tool Type | Hand Tap |
