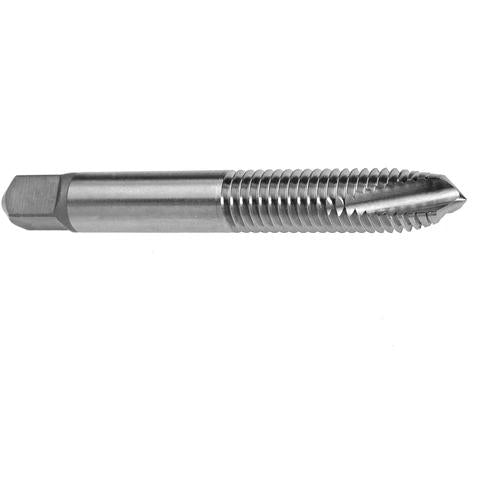

5-40 H-2 FLUTELESS SPPT PLUG TAPS 105C
Item #: EP4037222
Brand: Reiff & Nestor
Model #: 37222
| Product Specifications | |
|---|---|
| Thread Standard | NC |
| Thread Cutting Part Length (THL) | 5/8″ |
| Thread Size | #5 - 40 |
| Drive Size (DRVS) | 0.11″ |
| Thread Diameter Size (TDZ) | #5 |
| Flute Length | 5/8″ |
| Threads per Inch (TPI) | 40 |
| End Shape | Spiral Point |
| Thread Tolerance Class (TCTR) | H2 |
| Style | Plug |
| Usable Length (LU) | 5/8″ |
| Shank Type | Round |
| Overall Length (OAL) | 1-15/16″ |
| Cutting Direction (HAND) | Right Hand |
| Coating | Bright |
| Square Size | 0.110″ × 3/16″ |
| Flute Count (NOF) | 0 |
| Measurement Type | Machine Screw |
| Cutting Edge Material | HSS |
| Series/List # | 105C |
| Tool Type | Tap |
| Grade | HSS |
| Connection Diameter Machine Side (DCONMS) | 0.11″ |
