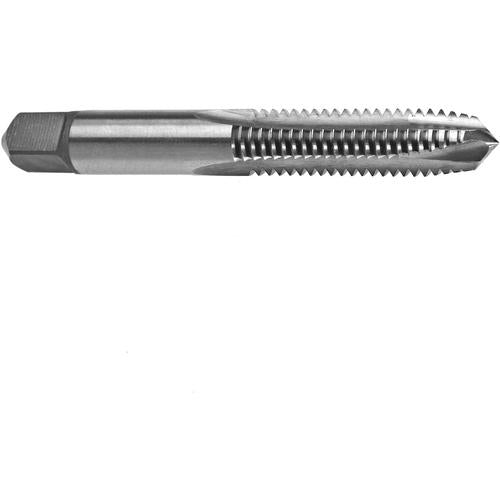

1/4-28 2FL H-3 SPPT PLUG ASTRO CHROME TAPS 51R
Item #: EP4050932
Brand: Reiff & Nestor
Model #: 50932
| Product Specifications | |
|---|---|
| Thread Standard | NF |
| Thread Cutting Part Length (THL) | 1″ |
| Thread Size | 1/4″ - 28 |
| Drive Size (DRVS) | 0.191″ |
| Thread Diameter Size (TDZ) | 1/4″ |
| Flute Length | 1″ |
| Threads per Inch (TPI) | 28 |
| Flute Type | Straight |
| Thread Tolerance Class (TCTR) | H3 |
| End Shape | Spiral Point |
| Usable Length (LU) | 1″ |
| Style | Plug |
| Overall Length (OAL) | 2-1/2″ |
| Shank Type | Round |
| Coating | Chrome |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 2 |
| Square Size | 0.191″ × 5/16″ |
| Cutting Edge Material | HSS |
| Measurement Type | Inch |
| Tool Type | Tap |
| Series/List # | 51R |
| Connection Diameter Machine Side (DCONMS) | 0.191″ |
| Grade | HSS |
