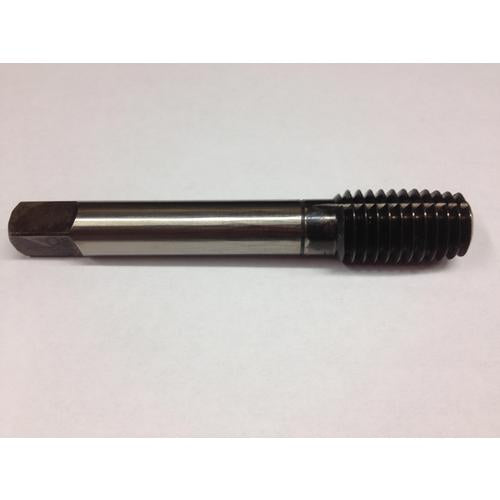

7/16-14 PH-6 6-N TREAT PLUG THD FORMER TAPS 16B
Item #: EP4060862
Brand: Reiff & Nestor
Model #: 60862
| Product Specifications | |
|---|---|
| Tool Type | Thread Former |
| Flute Length | 7/8″ |
| Thread Diameter Size (TDZ) | 7/16″ |
| Chamfer | Plug |
| Overall Length (OAL) | 3-5/32″ |
| Square Size | 0.242″ × 13/32″ |
| Thread Cutting Part Length (THL) | 7/8″ |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 0.242″ |
| Cutting Edge Material | HSS |
| Flute Count (NOF) | 0 |
| Cutting Direction (HAND) | Right Hand |
| Thread Tolerance Class (TCTR) | H6 |
| Pack Size | 12 |
| Thread Standard | NC |
| Series/List # | 16B |
| Coating | 6-N Treat |
| Thread Size | 7/16″ - 14 |
| Threads per Inch (TPI) | 14 |
