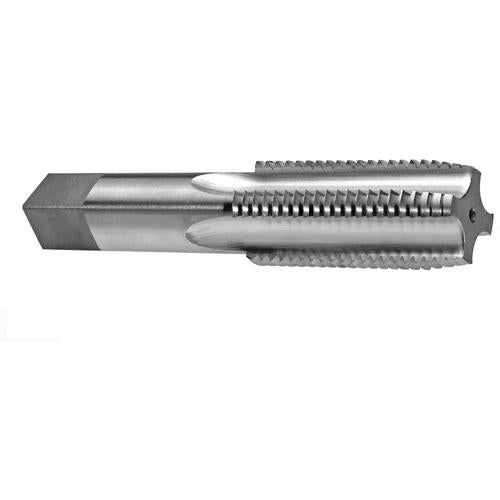

(62776-62777-62778) M22X2.5 4FL D-6 METRIC TAP SET 100M
Item #: EP4062798
Brand: Reiff & Nestor
Model #: 62798
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M22 |
| Connection Diameter Machine Side (DCONMS) | 0.523″ |
| Thread Standard | NC |
| Flute Count (NOF) | 4 |
| Pitch in mm | 2.5 mm |
| Cutting Edge Material | HSS |
| Flute Type | Straight |
| Quantity | 3 |
| Thread Tolerance Class (TCTR) | D6 |
| Measurement Type | Metric |
| Tool Type | Tap |
| Series/List # | 100M |
| Flute Length | 2-7/32″ |
| Thread Cutting Part Length (THL) | 2-7/32″ |
| Cutting Direction (HAND) | Right Hand |
| Thread Pitch (TP) | 2.5 mm |
| Coating | Bright |
| Thread Size | M22 × 2.5 |
| Overall Length (OAL) | 4-11/16″ |
