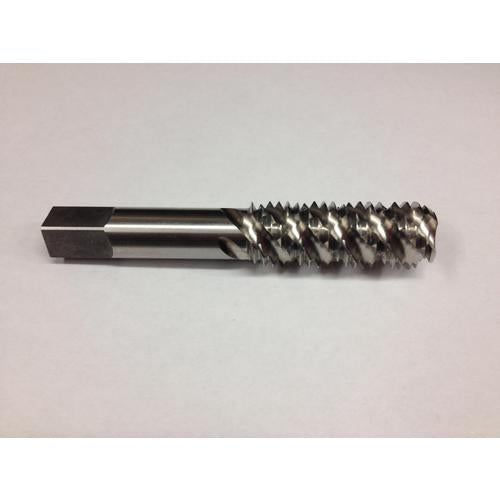

1/2-13 3FL H-3 HD SPFL BOTTOM TAPS 106HD
Item #: EP4064225
Brand: Reiff & Nestor
Model #: 64225
| Product Specifications | |
|---|---|
| Tool Type | STI Tap |
| Chamfer | Bottom |
| Thread Diameter Size (TDZ) | 1/2″ |
| Coating | Bright |
| Thread Tolerance Class (TCTR) | H3 |
| Cutting Direction (HAND) | Right Hand |
| Thread Standard | STI |
| Flute Helix Angle (FHA) | 45 Degrees |
| Thread Cutting Part Length (THL) | 1-21/32″ |
| Flute Length | 1-21/32″ |
| Threads per Inch (TPI) | 13 |
| Flute Type | Spiral Flute |
| Overall Length (OAL) | 3-3/8″ |
| Measurement Type | Inch |
| Cutting Edge Material | HSS |
| Connection Diameter Machine Side (DCONMS) | 0.360″ × 9/16″ |
| End Shape | Chamfer |
| Series/List # | 106HD |
| Flute Count (NOF) | 3 |
| Thread Size | 1/2″ - 13 |
