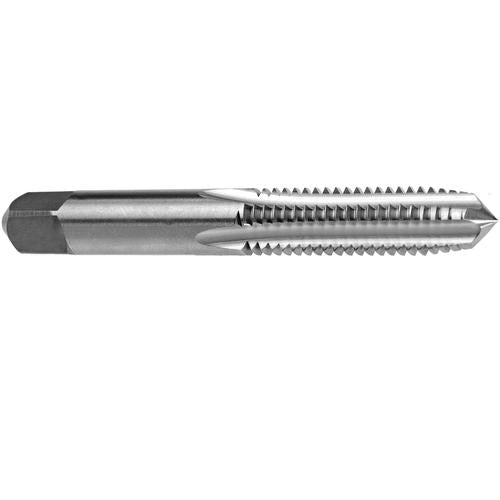

M10X1.25 4FL D-5 TAPER METRIC TAPS 100MOS
Item #: EP4081327
Brand: Reiff & Nestor
Model #: 81327
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M10 |
| Chamfer | Taper |
| Thread Pitch (TP) | 1.25 mm |
| Coating | Bright |
| Thread Standard | NS |
| Drive Size (DRVS) | 0.286″ |
| Overall Length (OAL) | 2-15/16″ |
| Flute Type | Straight Flute |
| Thread Cutting Part Length (THL) | 1-1/4″ |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 0.286″ |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 |
| Square Size | 1-1/4″ × 0.286″ |
| Flute Helix Angle (FHA) | 0 Degrees |
| Standard Pack Size | 12 |
| Cutting Edge Material | HSS |
| Series/List # | 100MOS |
| Thread Tolerance Class (TCTR) | D5 |
| Thread Size | M10 × 1.25 |
| Tool Type | Hand Tap |
