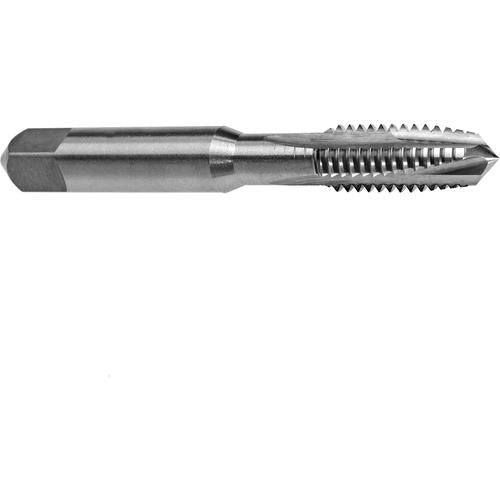

8-32 3FL H-3 CNC DESIGN SPPT PLUG TAPS 402V
Item #: EP4084803
Brand: Reiff & Nestor
Model #: 84803
| Product Specifications | |
|---|---|
| Thread Standard | NC |
| Thread Cutting Part Length (THL) | 3/8″ |
| Thread Size | #8 - 32 |
| Drive Size (DRVS) | 0.131″ |
| Thread Diameter Size (TDZ) | #8 |
| Flute Length | 3/8″ |
| Threads per Inch (TPI) | 32 |
| Flute Type | Straight |
| Thread Tolerance Class (TCTR) | H3 |
| End Shape | Spiral Point |
| Usable Length (LU) | 3/8″ |
| Style | Plug |
| Overall Length (OAL) | 2-1/8″ |
| Shank Type | Round |
| Coating | Bright |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 |
| Square Size | 0.131″ × 1/4″ |
| Cutting Edge Material | HSS |
| Measurement Type | Machine Screw |
| Tool Type | Tap |
| Series/List # | 402V |
| Connection Diameter Machine Side (DCONMS) | 0.131″ |
| Grade | HSS |
