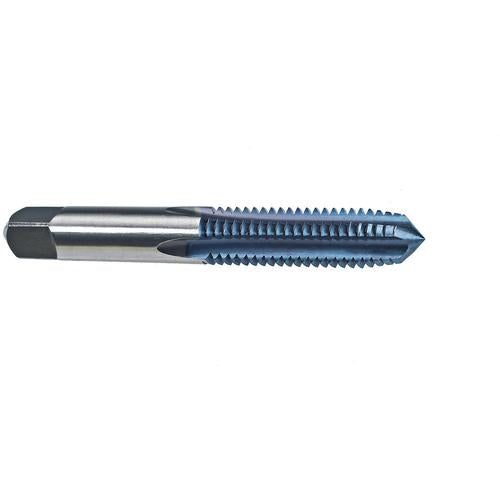

4-48 3FL H-1 PENTA BLUE BOTTOM TAPS (11613) A46
Item #: EP4099056
Brand: Reiff & Nestor
Model #: 99056
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | #4 |
| Tool Type | Hand Tap |
| Threads per Inch (TPI) | 48 |
| Chamfer | Bottom |
| Thread Standard | NF |
| Coating | Blue Diamond |
| Overall Length (OAL) | 1-7/8″ |
| Drive Size (DRVS) | 0.11″ |
| Thread Cutting Part Length (THL) | 9/16″ |
| Flute Type | Straight Flute |
| Connection Diameter Machine Side (DCONMS) | 0.11″ |
| End Shape | Square |
| Flute Count (NOF) | 3 |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 0 Degrees |
| Square Size | 9/16″ × 0.110″ |
| Cutting Edge Material | HSS |
| Standard Pack Size | 12 |
| Thread Tolerance Class (TCTR) | H1 |
| Thread Size | #4 - 48 |
