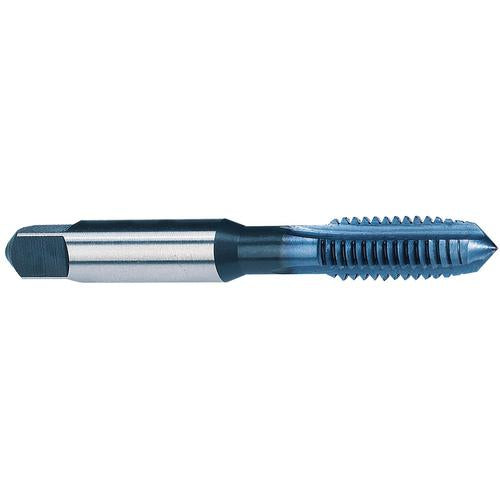

8-32 3FL H-3 BLUE DIAMOND TREAT CNC DESIGN BOTTOM TAPS 403V (84423) 458
Item #: EP4099324
Brand: Reiff & Nestor
Model #: 99324
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | #8 |
| Tool Type | Hand Tap |
| Threads per Inch (TPI) | 32 |
| Chamfer | Bottom |
| Thread Standard | NC |
| Coating | Blue Diamond |
| Overall Length (OAL) | 2-1/8″ |
| Drive Size (DRVS) | 0.131″ |
| Thread Cutting Part Length (THL) | 3/8″ |
| Flute Type | Straight Flute |
| Usable Length (LU) | 7/8″ |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 0.131″ |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 |
| Square Size | 3/8″ + 1/2″ NECK × 0.131″ |
| Flute Helix Angle (FHA) | 0 Degrees |
| Standard Pack Size | 12 |
| Cutting Edge Material | HSS |
| Thread Size | #8 - 32 |
| Thread Tolerance Class (TCTR) | H3 |
