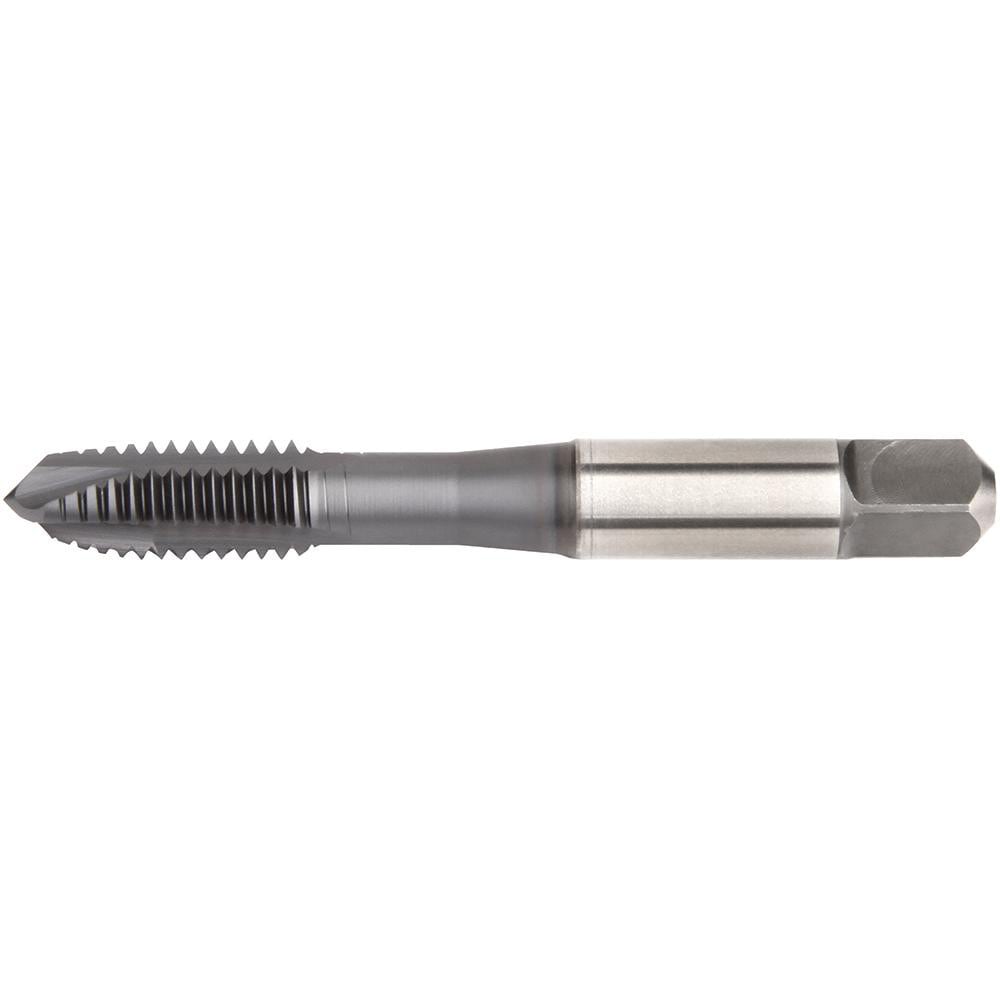

Brand: Widia / Part #: 5367341
Item #: 90899063
Brand: Widia
Model #: 5367341
Product Specifications
| Thread Size (mm) | M10x1.5 |
| Number Of Flutes | 3 |
| Chamfer | Plug |
| Thread Limit | D6 |
| Class Of Fit | D6 |
| Coating/Finish | TiN |
| Threads per Inch | 17 |
| Material | High Speed Steel |
| Coolant Through | No |
| Thread Direction | Right Hand |
| Thread Depth (mm) | 31.90 |
| Thread Pitch (mm) | 1.50 |
| Thread Standard | UNC |
| Material Grade | WU41EG |
| Thread Length (mm) | 19.10 |
| Overall Length (mm) | 74.3000 |
| Shank Diameter (Decimal Inch) | 0.3810 |
| Square Length (mm) | 11.10 |
| Square Size (mm) | 7.21 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Series | VT-SPO |
