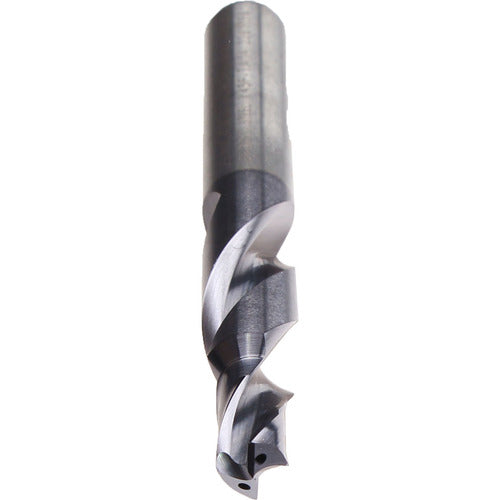

8.5X22MM STEP DRL W/CLNT
Item #: ER4503344085022
Brand: EMUGE-FRANKEN
Model #: TG203344.085022
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 8.5 mm |
| Number of Steps | 1 |
| Decimal Equivalent | 0.3346 |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 8.5 mm |
| Coating | TiAlN-T14 |
| Cutting Diameter Minimum (DCN) | 8.5 mm |
| Coolant Supply Property (CSP) | Axial Coolant Through |
| Length Chip Flute (LCF) | 56 mm |
| Measurement Type | Metric |
| Usable Length (LU) | 22 mm |
| Shank Standard | HA |
| Shank Size (SS) | 12 mm |
| Shank Type | Cylindrical |
| Overall Length (OAL) | 102 mm |
| Step Diameter Length (SDL) | 22 mm |
| Point Angle (SIG) | 140 Degrees |
| Tool Type | Carbide EF Step Drill |
| Flute Count (NOF) | 2 |
| Series/List # | G203344 |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Cutting Direction (HAND) | Right Hand |
