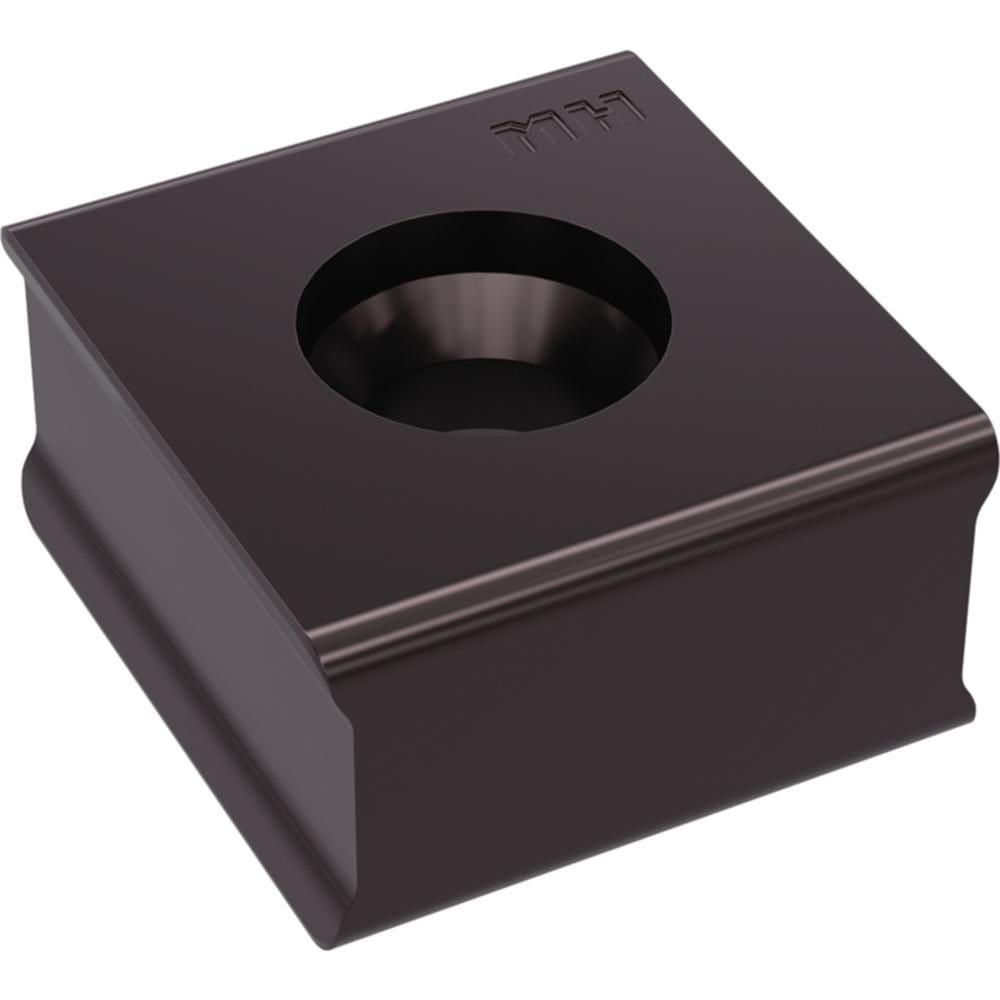

Brand: Widia / Part #: 6852418
Item #: 94066347
Brand: Widia
Model #: 6852418
Product Specifications
| Insert Style | LNGU |
| Insert Size Code | 2010 |
| Insert Size | 20 |
| Insert Material | Carbide |
| Manufacturer Grade | WP35CM |
| Inscribed Circle (Decimal Inch) | 0.7303 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Corner Radius (Inch) | 3/64 |
| Insert Hand | Neutral |
| Relief Angle | 0.000 |
| Series | M4070 |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.2677 |
| Maximum Depth of Cut (Decimal Inch) | 0.7874 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Rectangle |
| Rake | Negative |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Ansi Code | LNGU201012SNMH |
| Iso Code | LNGU201012SNMH |
| Manufacturers Catalog Number | LNGU201012SNMH |
| Cutter Series Compatibility | M4070 LNGX20 |
| Chip Breaker | MH |
| Cutting Direction | Neutral |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Rectangle |
| Length of Cut (mm) | 20.0000 |
| Insert Holding Method | Screw |
| Thickness (mm) | 10.0000 |
| Coating Classification | CVD |
| Single or Double Sided Insert | Double |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Included Angle Degree | 90 |
| Length | 20.00 |
| Width (Decimal Inch - 4 Decimals) | 0.7303 |
| Thickness (Decimal Inch - 4 Decimals) | 0.3937 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.7874 |
