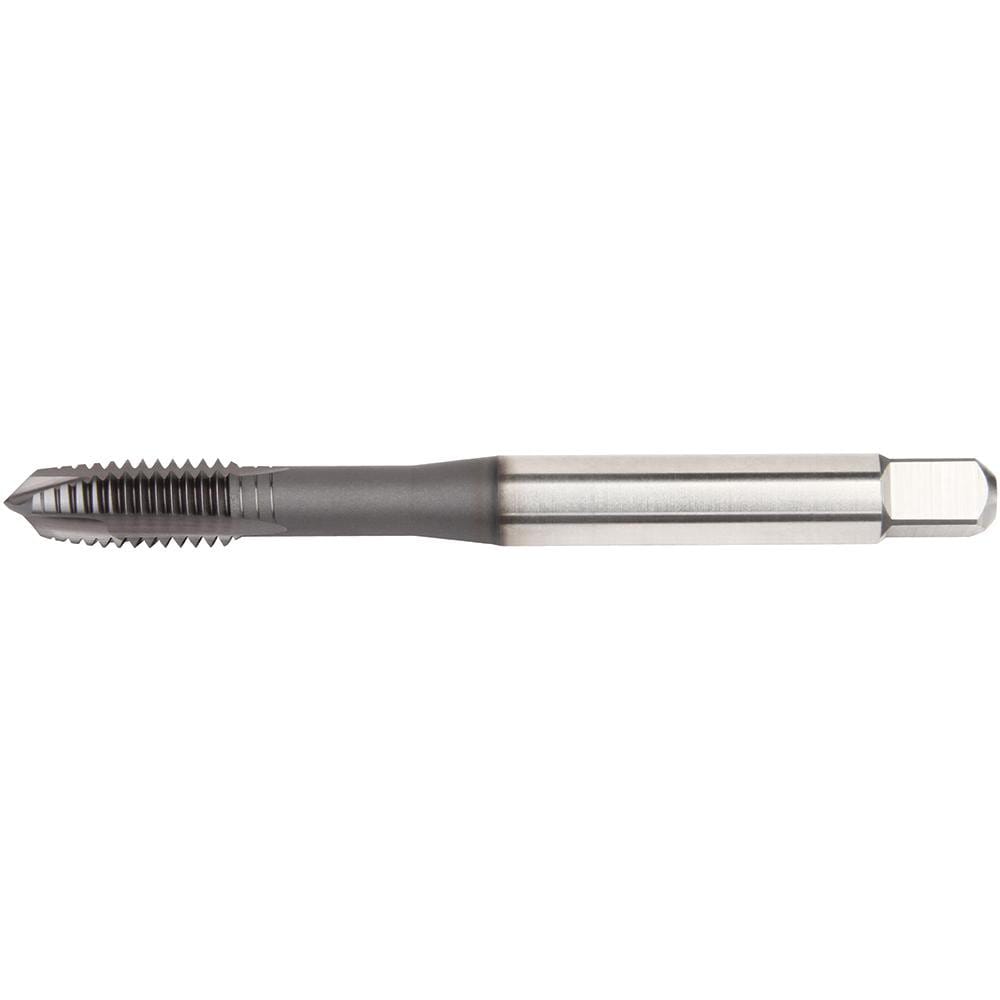

Brand: Widia / Part #: 5387781
Item #: 90875451
Brand: Widia
Model #: 5387781
Product Specifications
| Thread Size (Inch) | 1/2-20 |
| Number Of Flutes | 3 |
| Chamfer | Plug |
| Thread Limit | 3B |
| Class Of Fit | 3B |
| Coating/Finish | Black Oxide |
| Threads per Inch | 20 |
| Material | High Speed Steel |
| Coolant Through | No |
| Thread Direction | Right Hand |
| Thread Depth (Decimal Inch) | 1.8500 |
| Thread Pitch (Decimal Inch) | 0.0500 |
| Thread Standard | UNC |
| Material Grade | WP49EG |
| Thread Length (Decimal Inch) | 0.9100 |
| Overall Length (Decimal Inch) | 4.3300 |
| Shank Diameter (Decimal Inch) | 0.3543 |
| Square Size (Decimal Inch) | 0.2760 |
| Material Application | Stainless Steel; Cast Iron; Steel |
| Series | VT-SPO |
