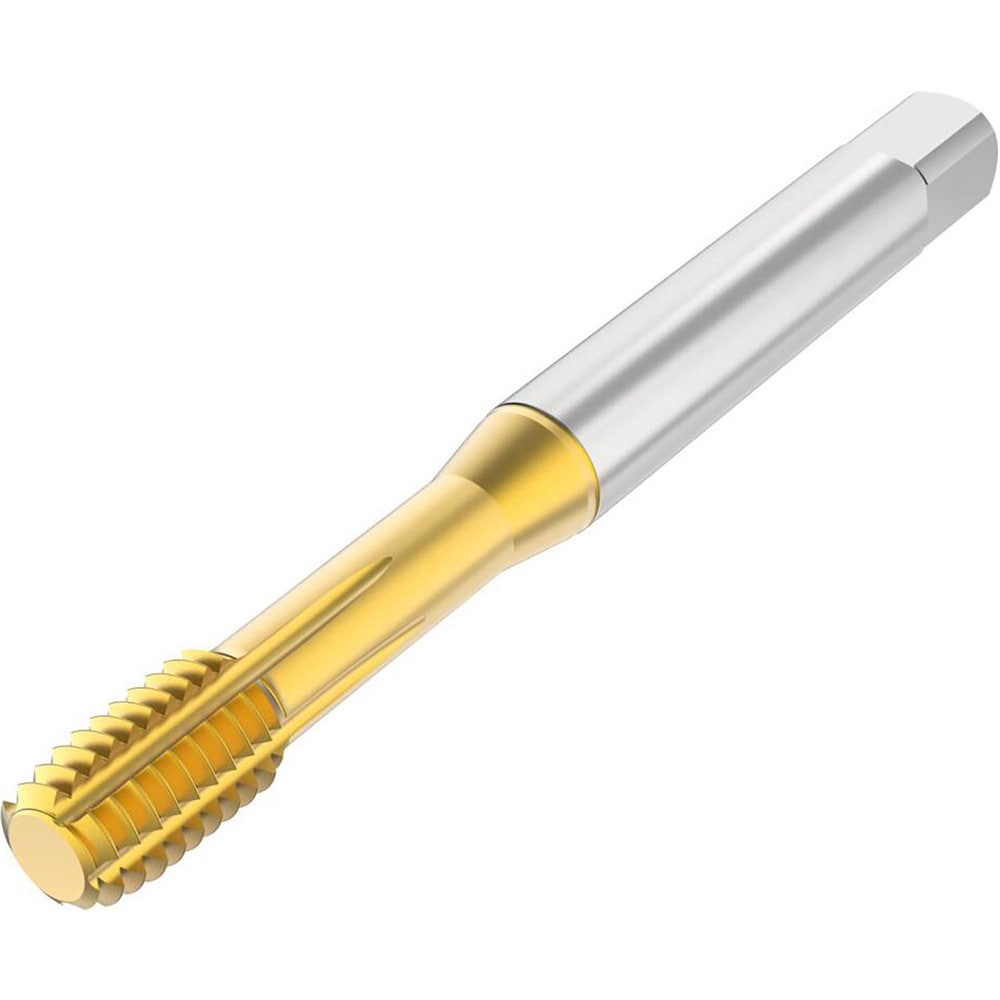

Brand: Seco / Part #: 10139235
Item #: 99571861
Brand: Seco
Model #: 10139235
Product Specifications
| Thread Size (Inch) | 1/4-20 |
| Overall Length (mm) | 80.0000 |
| Chamfer | Modified Bottoming |
| Coating/Finish | TN |
| Thread Pitch (mm) | 1.27 |
| Thread Standard | UNC |
| Thread Direction | Right Hand |
| Material | HSS-E |
| Thread Length (mm) | 13.00 |
| Thread Depth (mm) | 13.00 |
| Thread Depth | 13.0000 |
| Shank Diameter (mm) | 7.0000 |
| Neck Length | 17.00 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Steel |
| Application | Industrial |
| Series | T33 |
| Tap Type | Thread Forming |
| Tapping Depth (mm) | 30.00 |
| Shank Length (mm) | 50.000 |
| Threads per Inch | 20 |
| Class Of Fit | 2BX |
| Coolant Through | No |
