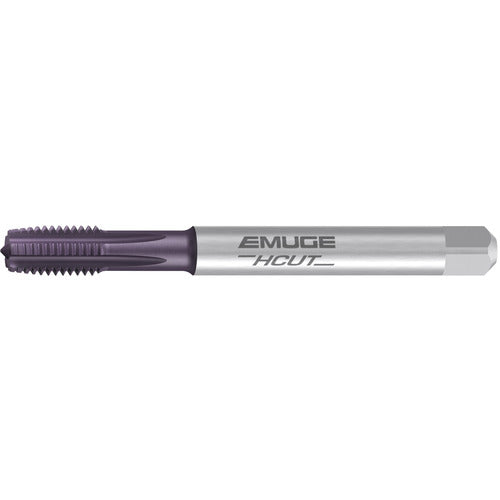

M 12-6HX REK.1A-HCUT/D
Item #: ER4511853
Brand: EMUGE-FRANKEN
Model #: B016K101.0112
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M12 |
| Standard | DIN |
| Thread Pitch (TP) | 1.75 mm |
| Tool Type | Rekord A-HCUT |
| Thread Standard | Metric |
| Chamfer | 3.5P-5P |
| Overall Length (OAL) | 110 mm |
| Coating | TiCN |
| Usable Length (LU) | 41 mm |
| Flute Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 5 |
| Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 0 Degrees |
| Measurement Type | Metric |
| Applicable Material | Cast Iron | Hard Materials |
| Series/List # | 016K101 |
| Cutting Edge Material | Carbide |
| Thread Size | M12 × 1.75 |
| Thread Tolerance Class (TCTR) | 6HX |
