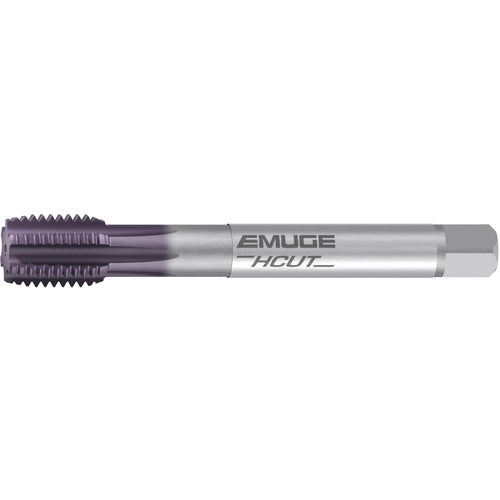

M 12X1.5-6HX REK.2A-HCUT TICN
Item #: ER4513612
Brand: EMUGE-FRANKEN
Model #: C010J901.0303
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M12 |
| Tool Type | Rekord A-HCUT |
| Thread Pitch (TP) | 1.5 mm |
| Chamfer | 2P-3P |
| Thread Standard | Metric |
| Coating | TiCN |
| Overall Length (OAL) | 100 mm |
| Flute Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 9 mm |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 0 Degrees |
| Coolant Supply Property (CSP) | External |
| Applicable Material | Hard Materials |
| Measurement Type | Metric |
| Cutting Edge Material | HSS-E-PM |
| Series/List # | 010J901 |
| Thread Tolerance Class (TCTR) | 6HX |
| Thread Size | M12 × 1.5 |
| Standard | DIN |
