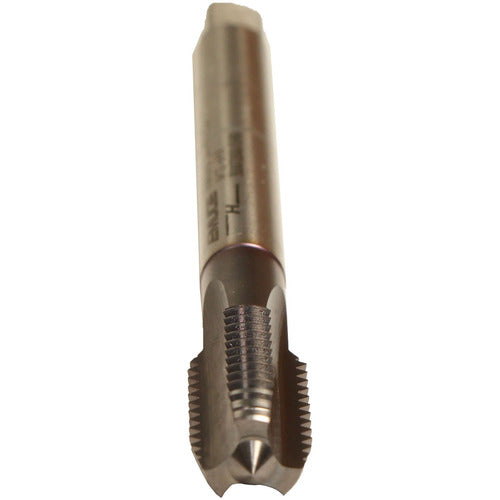

M 36-6HX REK. 2A-H TICN
Item #: ER4513710
Brand: EMUGE-FRANKEN
Model #: C0109101.0136
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M36 |
| Tool Type | Rekord A-Steel |
| Thread Pitch (TP) | 4 mm |
| Chamfer | 2P-3P |
| Thread Standard | Metric |
| Coating | TiCN |
| Overall Length (OAL) | 200 mm |
| Flute Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 28 mm |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 0 Degrees |
| Coolant Supply Property (CSP) | External |
| Applicable Material | Steel | Aluminum / Non-Ferrous Materials |
| Measurement Type | Metric |
| Cutting Edge Material | HSSE |
| Series/List # | 0109101 |
| Thread Tolerance Class (TCTR) | 6HX |
| Thread Size | M36 × 4 |
| Standard | DIN |
