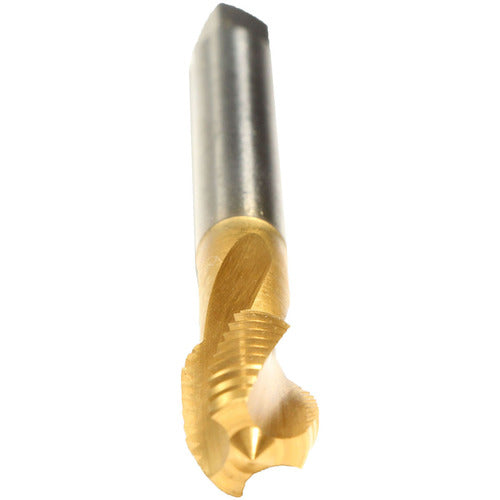

M 8X1.0-6HX REK.2D-Z TIN
Item #: ER4514025
Brand: EMUGE-FRANKEN
Model #: C0453701.0251
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M8 |
| Standard | DIN |
| Thread Pitch (TP) | 1 mm |
| Tool Type | Rekord D-Z |
| Thread Standard | Metric |
| Chamfer | 2P-3P |
| Overall Length (OAL) | 90 mm |
| Coating | TiN |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Flute Type | Spiral |
| Flute Helix Angle (FHA) | 15 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Steel | Stainless Steel |
| Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSE |
| Measurement Type | Metric |
| Thread Tolerance Class (TCTR) | 6HX |
| Series/List # | 453701 |
