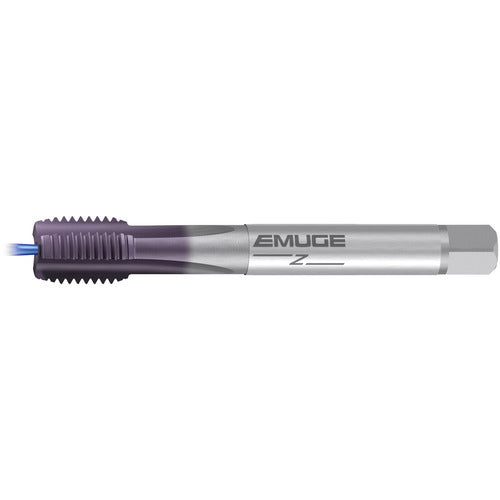

M 30-6HX REK.2A-Z-IKZ TICN
Item #: ER4514589
Brand: EMUGE-FRANKEN
Model #: C1959401.0130
| Product Specifications | |
|---|---|
| Thread Standard | Metric |
| Standard | DIN |
| Thread Size | M30 × 3.5 |
| Tool Type | Rekord A-Z |
| Thread Diameter Size (TDZ) | M30 |
| Applicable Material | Stainless Steel |
| Thread Pitch (TP) | 3.5 mm |
| Connection Diameter Machine Side (DCONMS) | 22 mm |
| Thread Tolerance Class (TCTR) | 6HX |
| Flute Helix Angle (FHA) | 0 Degrees |
| Overall Length (OAL) | 180 mm |
| Style | Spiral Point |
| Chamfer | 2P-3P |
| Cutting Direction (HAND) | Right Hand |
| Coating | TiCN |
| Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Edge Material | HSS-E |
| Series/List # | 1959401 |
