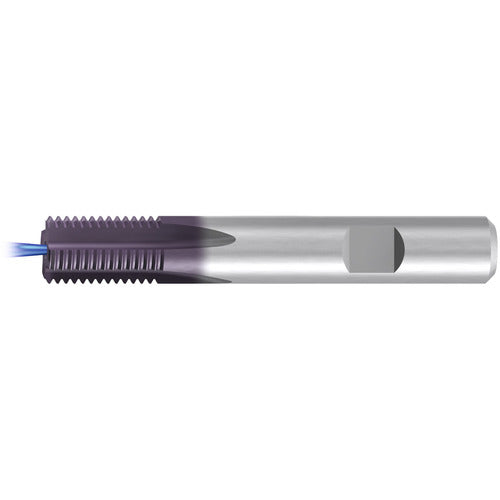

P .75 D8X12X63 GF 3STFL TICN
Item #: ER4516676
Brand: EMUGE-FRANKEN
Model #: GF163106.9509
| Product Specifications | |
|---|---|
| Thread Size | M11 |
| Application | Tool for different thread sizes and pitches with correct thread profile |
| Thread Pitch (TP) | 0.75 mm |
| Applicable Material | Universal Materials |
| Thread Diameter Size (TDZ) | >=M11 |
| Flute Helix Angle (FHA) | 0 Degrees |
| Thread Standard | Metric |
| Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Flute Type | Straight |
| Cutting Diameter (DC) | 8 mm |
| Usable Length (LU) | 12.3 mm |
| Overall Length (OAL) | 63 mm |
| Series/List # | A214524 |
| Flute Count (NOF) | 3 |
| Length Group | Standard |
| Coolant Supply Property (CSP) | Coolant Thru |
| Tool Type | Thread Mill |
| Shank Type | HB |
| Cutting Direction (HAND) | Right Hand | Left Hand |
| Coating | TiCN |
