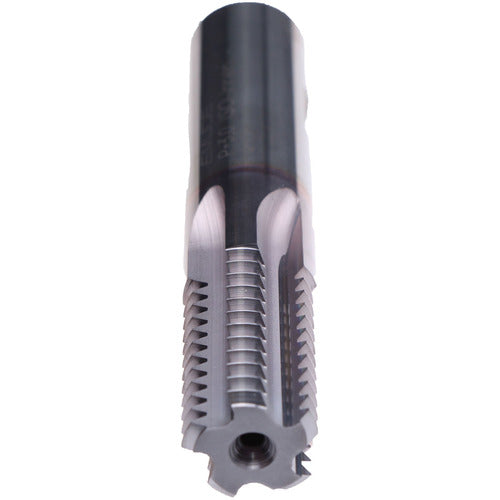

1″ min - 12 / GF - Coolant - TICN Thread Mill
Item #: ER4516732
Brand: EMUGE-FRANKEN
Model #: GF163156.9585
| Product Specifications | |
|---|---|
| Thread Size | 1″ |
| Application | Tool for different thread sizes and pitches with correct thread profile |
| Threads per Inch (TPI) | 12 |
| Applicable Material | Universal Materials |
| Thread Diameter Size (TDZ) | 1″ |
| Helix Angle | 0 Degrees |
| Thread Standard | UN |
| Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 20 mm |
| Flute Type | Straight |
| Cutting Diameter (DC) | 19.9 mm |
| Usable Length (LU) | 32.7 mm |
| Overall Length (OAL) | 105 mm |
| Series/List # | A214524 |
| Flute Count (NOF) | 5 |
| Length Group | Standard |
| Coolant Supply Property (CSP) | Coolant Thru |
| Tool Type | Thread Mill |
| Shank Type | HB |
| Cutting Direction (HAND) | Right Hand | Left Hand |
| Coating | TiCN |
