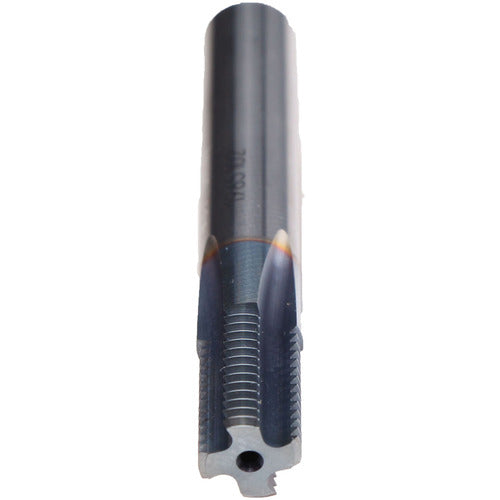

1/2″ min - 24 / GF - Coolant - TICN Thread Mill
Item #: ER4516751
Brand: EMUGE-FRANKEN
Model #: GF163216.9579
| Product Specifications | |
|---|---|
| Thread Size | 1/2″ |
| Application | Tool for different thread sizes and pitches with correct thread profile |
| Threads per Inch (TPI) | 24 |
| Applicable Material | Universal Materials |
| Thread Diameter Size (TDZ) | 1/2″ |
| Helix Angle | 0 Degrees |
| Thread Standard | UN |
| Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Flute Type | Straight |
| Cutting Diameter (DC) | 9.9 mm |
| Usable Length (LU) | 16.3 mm |
| Overall Length (OAL) | 70 mm |
| Series/List # | A214524 |
| Flute Count (NOF) | 4 |
| Length Group | Long |
| Coolant Supply Property (CSP) | Coolant Thru |
| Tool Type | Thread Mill |
| Shank Type | HB |
| Cutting Direction (HAND) | Right Hand | Left Hand |
| Coating | TiCN |
