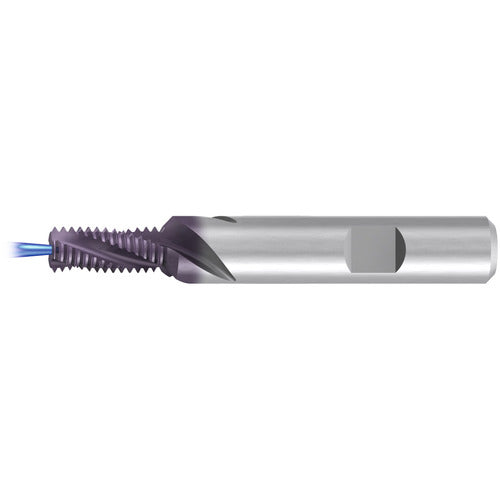

9/16-12 GSF Style Spiral Flute - TICN Thread Mill
Item #: ER4516964
Brand: EMUGE-FRANKEN
Model #: GF332106.5014
| Product Specifications | |
|---|---|
| Thread Size | 9/16″ |
| Coating | TiCN |
| Threads per Inch (TPI) | 12 |
| Applicable Material | Universal Materials |
| Thread Diameter Size (TDZ) | 9/16″ |
| Flute Helix Angle (FHA) | 30 Degrees |
| Thread Standard | UNC |
| Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Flute Type | Spiral |
| Cutting Diameter (DC) | 11.8 mm |
| Usable Length (LU) | 30.8 mm |
| Overall Length (OAL) | 100 mm |
| Series/List # | A223344 |
| Flute Count (NOF) | 4 |
| Length Group | 2xD |
| Coolant Supply Property (CSP) | Coolant Thru |
| Tool Type | Thread Mill |
| Shank Type | HB |
| Cutting Direction (HAND) | Right Hand | Left Hand |
