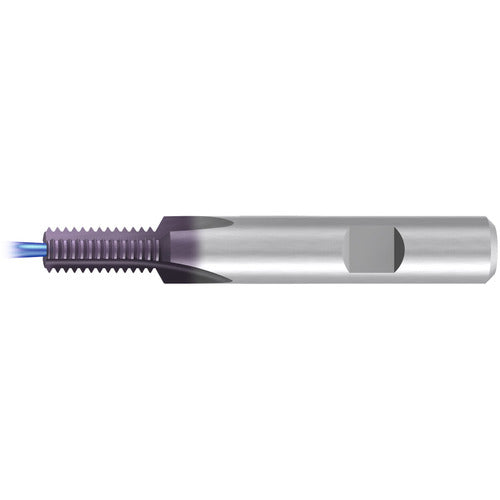

LK-M 5 BT-2XD GSF 3STFL
Item #: ER4516979
Brand: EMUGE-FRANKEN
Model #: GF333106.1050
| Product Specifications | |
|---|---|
| Thread Size | M5 |
| Coating | TiCN |
| Thread Pitch (TP) | 0.8 mm |
| Applicable Material | Universal Materials |
| Thread Diameter Size (TDZ) | M5 |
| Flute Helix Angle (FHA) | 0 Degrees |
| Thread Standard | Metric |
| Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Flute Type | Straight |
| Cutting Diameter (DC) | 4 mm |
| Usable Length (LU) | 10.7 mm |
| Overall Length (OAL) | 55 mm |
| Series/List # | A223344 |
| Flute Count (NOF) | 3 |
| Length Group | 2xD |
| Coolant Supply Property (CSP) | Coolant Thru |
| Tool Type | Thread Mill |
| Shank Type | HB |
| Cutting Direction (HAND) | Right Hand | Left Hand |
