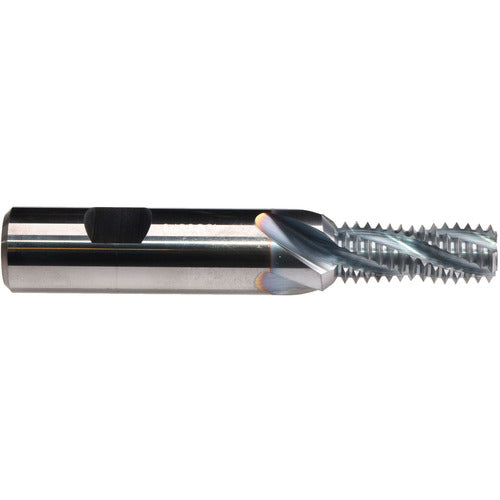

M 12X1.25-2XD GSF-Z TICN
Item #: ER4517021
Brand: EMUGE-FRANKEN
Model #: GF335126.0302
| Product Specifications | |
|---|---|
| Thread Size | M12 |
| Coating | TiCN |
| Thread Pitch (TP) | 1.25 mm |
| Applicable Material | Universal Materials |
| Thread Diameter Size (TDZ) | M12 |
| Helix Angle | 15 Degrees |
| Thread Standard | Metric |
| Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 14 mm |
| Flute Type | Spiral |
| Cutting Diameter (DC) | 10.4 mm |
| Usable Length (LU) | 24.4 mm |
| Overall Length (OAL) | 90 mm |
| Series/List # | A403324 |
| Flute Count (NOF) | 5 |
| Length Group | 2xD |
| Coolant Supply Property (CSP) | Coolant Thru |
| Tool Type | Thread Mill |
| Shank Type | HB |
| Cutting Direction (HAND) | Right Hand | Left Hand |
