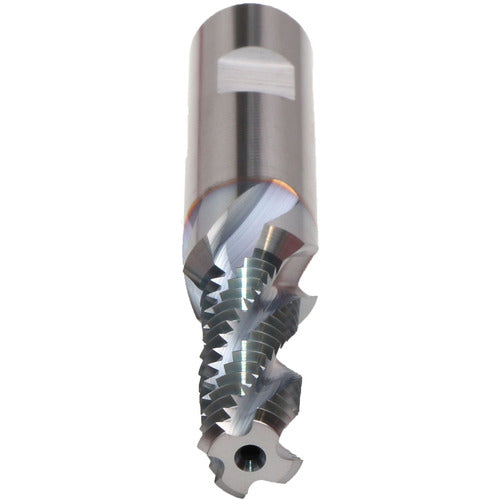

M 10 2.5XD GSF 3SPFL TICN
Item #: ER4517034
Brand: EMUGE-FRANKEN
Model #: GF342106.0100
| Product Specifications | |
|---|---|
| Thread Size | M10 |
| Coating | TiCN |
| Thread Pitch (TP) | 1.5 mm |
| Applicable Material | Universal Materials |
| Thread Diameter Size (TDZ) | M10 |
| Helix Angle | 30 Degrees |
| Thread Standard | Metric |
| Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Flute Type | Spiral |
| Cutting Diameter (DC) | 8.2 mm |
| Usable Length (LU) | 26.3 mm |
| Overall Length (OAL) | 85 mm |
| Series/List # | A403324 |
| Flute Count (NOF) | 3 |
| Length Group | 2.5xD |
| Coolant Supply Property (CSP) | Coolant Thru |
| Tool Type | Thread Mill |
| Shank Type | HB |
| Cutting Direction (HAND) | Right Hand | Left Hand |
