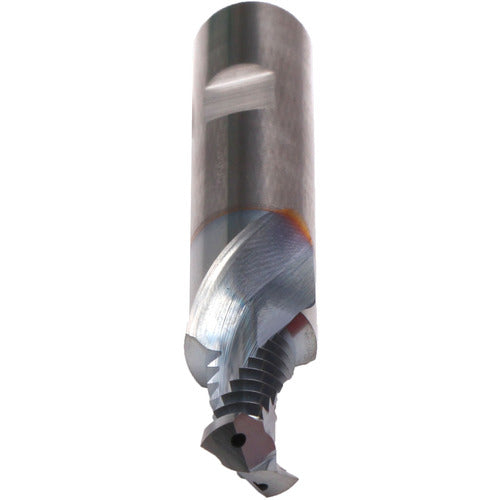

EG M 6 1.5XD BGF THRILLER TICN
Item #: ER4517083
Brand: EMUGE-FRANKEN
Model #: GF422206.0971
| Product Specifications | |
|---|---|
| Thread Size | M6 |
| Application | 2-Flute for work in solid materials |
| Thread Pitch (TP) | 1 mm |
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Thread Diameter Size (TDZ) | M6 |
| Helix Angle | 30 Degrees |
| Thread Standard | Metric |
| Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Flute Type | Spiral |
| Cutting Diameter (DC) | 6 mm |
| Usable Length (LU) | 12.3 mm |
| Overall Length (OAL) | 74 mm |
| Series/List # | A403324 |
| Flute Count (NOF) | 2 |
| Length Group | 1.5xD |
| Coolant Supply Property (CSP) | Coolant Thru |
| Tool Type | Thread Mill |
| Shank Type | HB |
| Cutting Direction (HAND) | Right Hand |
| Coating | TiCN |
| Point Angle (SIG) | 140 Degrees |
