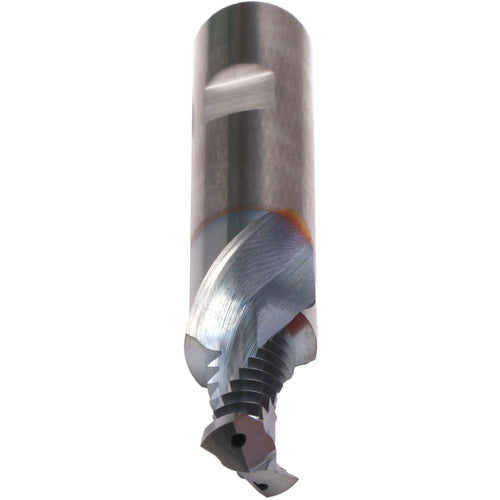

3/8-24 BGF-Z Style -TICN Thread Mill
Item #: ER4517096
Brand: EMUGE-FRANKEN
Model #: GF422206.5045
| Product Specifications | |
|---|---|
| Thread Size | 3/8″ |
| Coating | TiCN |
| Threads per Inch (TPI) | 24 |
| Application | 2-Flute for work in solid materials |
| Thread Diameter Size (TDZ) | 3/8″ |
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Thread Standard | UNF |
| Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Usable Length (LU) | 16.6 mm |
| Cutting Diameter (DC) | 7.65 mm |
| Series/List # | A403324 |
| Overall Length (OAL) | 79 mm |
| Length Group | 1.5xD |
| Flute Count (NOF) | 2 |
| Tool Type | Thread Mill |
| Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Direction (HAND) | Right Hand |
| Shank Type | HB |
| Point Angle (SIG) | 140 Degrees |
