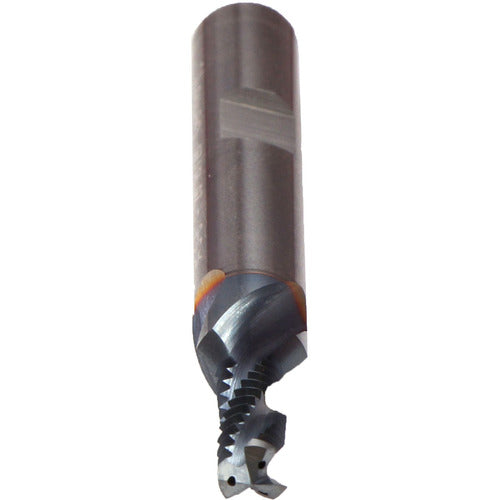

M 16 2XD BGF THRILLER TICN
Item #: ER4517181
Brand: EMUGE-FRANKEN
Model #: GF432256.0116
| Product Specifications | |
|---|---|
| Thread Size | M16 |
| Coating | TiCN |
| Thread Pitch (TP) | 2 mm |
| Application | 3 Flute for work in pre-cast threaded holes and solid material |
| Thread Diameter Size (TDZ) | M16 |
| Cutting Edge Material | Carbide |
| Thread Standard | Metric |
| Usable Length (LU) | 36.8 mm |
| Connection Diameter Machine Side (DCONMS) | 18 mm |
| Series/List # | A503344 |
| Cutting Diameter (DC) | 13.6 mm |
| Length Group | 2xD |
| Overall Length (OAL) | 102 mm |
| Tool Type | Thread Mill |
| Flute Count (NOF) | 3 |
| Cutting Direction (HAND) | Right Hand |
| Coolant Supply Property (CSP) | Coolant Thru |
| Point Angle (SIG) | 140 Degrees |
| Shank Type | HB |
