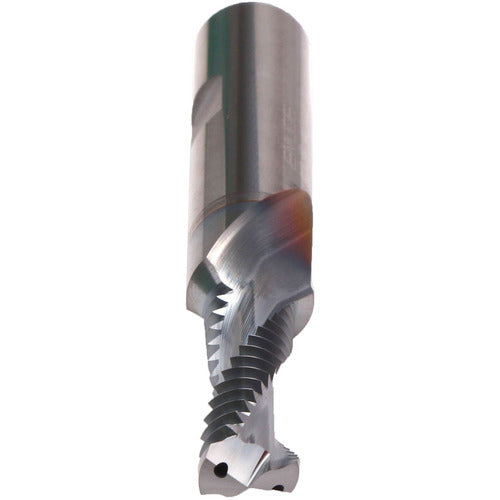

1/2-13 / BGF-Z / 2.5xD Spiral -TICN Thread Mill
Item #: ER4517194
Brand: EMUGE-FRANKEN
Model #: GF442206.5013
| Product Specifications | |
|---|---|
| Thread Size | 1/2″ |
| Application | 2-Flute for work in solid materials |
| Threads per Inch (TPI) | 13 |
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Thread Diameter Size (TDZ) | 1/2″ |
| Helix Angle | 30 Degrees |
| Thread Standard | UNC |
| Cutting Edge Material | carbide |
| Connection Diameter Machine Side (DCONMS) | 14 mm |
| Flute Type | Spiral |
| Cutting Diameter (DC) | 10.35 mm |
| Usable Length (LU) | 35.4 mm |
| Overall Length (OAL) | 95 mm |
| Series/List # | A503344 |
| Flute Count (NOF) | 2 |
| Length Group | 2.5xD |
| Coolant Supply Property (CSP) | Coolant Thru |
| Tool Type | Thread Mill |
| Shank Type | HB |
| Cutting Direction (HAND) | Right Hand |
| Coating | TiCN |
| Point Angle (SIG) | 140 Degrees |
