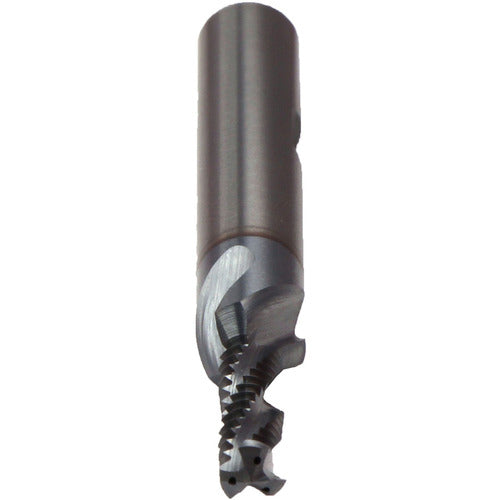

M 6 2.5XD BGF THRILLER TICN
Item #: ER4517201
Brand: EMUGE-FRANKEN
Model #: GF442256.0060
| Product Specifications | |
|---|---|
| Thread Size | M6 |
| Application | 3 Flute for work in pre-cast threaded holes and solid material |
| Thread Pitch (TP) | 1 mm |
| Helix Angle | 30 Degrees |
| Thread Diameter Size (TDZ) | M6 |
| Cutting Edge Material | Carbide |
| Thread Standard | Metric |
| Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Usable Length (LU) | 17 mm |
| Cutting Diameter (DC) | 4.8 mm |
| Series/List # | A503344 |
| Overall Length (OAL) | 65 mm |
| Length Group | 2.5xD |
| Flute Count (NOF) | 3 |
| Tool Type | Thread Mill |
| Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Direction (HAND) | Right Hand |
| Shank Type | HB |
| Point Angle (SIG) | 140 Degrees |
| Coating | TiCN |
