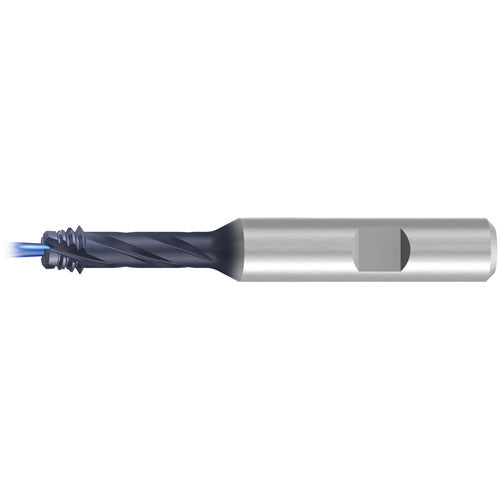

M 8X1.25 ZBGF-W THRILLER FUTURA
Item #: ER4517282
Brand: EMUGE-FRANKEN
Model #: GF732257.0080
| Product Specifications | |
|---|---|
| Thread Size | M8-M10 |
| Shank Type | HB |
| Thread Pitch (TP) | 1.25 mm |
| Coating | AlTiN |
| Thread Diameter Size (TDZ) | M8 - M10 |
| Applicable Material | Steel |
| Thread Standard | Metric |
| Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Series/List # | A503344 |
| Cutting Diameter (DC) | 6.2 mm |
| Length Group | 2xD |
| Overall Length (OAL) | 71 mm |
| Tool Type | Thread Mill |
| Flute Count (NOF) | 4 |
| Depth of Cut Maximum (APMX) | 5.7 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Direction (HAND) | Right Hand | Left Hand |
