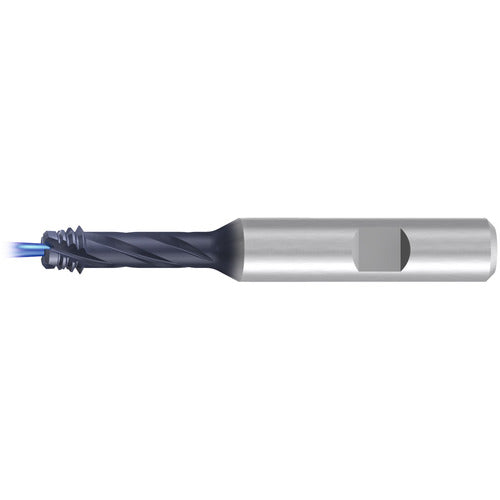

1/4-20 / ZBGF / W Style Thread Mill
Item #: ER4517286
Brand: EMUGE-FRANKEN
Model #: GF732257.5009
| Product Specifications | |
|---|---|
| Thread Size | 1/4″ |
| Shank Type | HB |
| Threads per Inch (TPI) | 20 |
| Coating | AlTiN |
| Thread Diameter Size (TDZ) | 1/4″ |
| Applicable Material | Steel |
| Thread Standard | UNC |
| Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Series/List # | A503344 |
| Cutting Diameter (DC) | 4.64 mm |
| Length Group | 2xD |
| Overall Length (OAL) | 60 mm |
| Tool Type | Thread Mill |
| Flute Count (NOF) | 3 |
| Depth of Cut Maximum (APMX) | 5.8 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Direction (HAND) | Right Hand | Left Hand |
