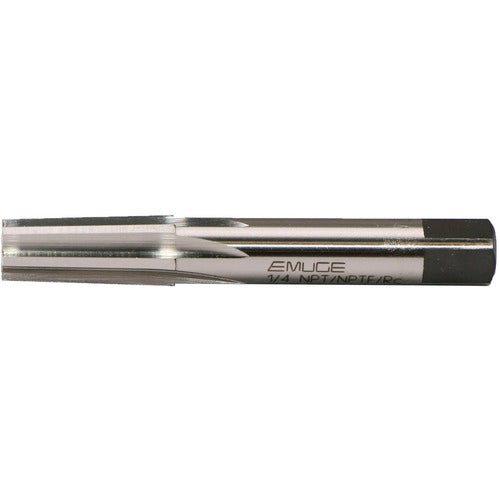

1 NPT/NPTF TAPER REAMER A
Item #: ER4517424
Brand: EMUGE-FRANKEN
Model #: G0037165.5769
| Product Specifications | |
|---|---|
| Tool Type | Taper Reamer |
| Cutting Direction (HAND) | Right Hand |
| Size | 1″ |
| Coolant Supply Property (CSP) | External |
| Cutting Diameter (DC) | 1″ |
| Flute Type | Straight |
| Length Chip Flute (LCF) | 43 mm |
| Shank Type | HA |
| Flute Helix Angle (FHA) | 0 Degrees |
| Weight of Item (WT) | 1.144 lbs |
| Flute Count (NOF) | 10 |
| Applicable Material | Universal Materials |
| Overall Length (OAL) | 130 mm |
| Cutting Edge Material | HSSE |
| Connection Diameter Machine Side (DCONMS) | 25 mm |
| Coating | Bright |
| Shank Size (SS) | 25 mm |
| Measurement Type | Inch |
| Cutting Edge Length (L) | 43 mm |
| Series/List # | A214524 |
