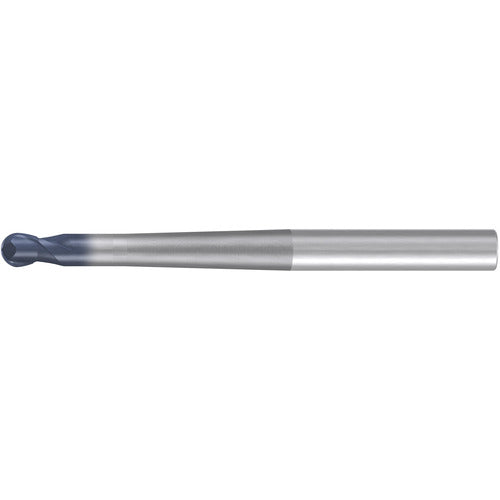

5/16 HM HPC BALL XL TIALN 2FL
Item #: ER4519126
Brand: EMUGE-FRANKEN
Model #: 1963A.03125
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/16″ |
| Application | Finishing |
| Connection Diameter Machine Side (DCONMS) | 5/16″ |
| Tool Type | Hard-Cut |
| Overall Length (OAL) | 4″ |
| Length Group | Extra Long |
| Cutting Edge Material | Carbide |
| End Shape | Ball Nose |
| Coating | AlTiN |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 |
| Decimal Equivalent | 0.3125″ |
| Flute Helix Angle (FHA) | 30 Degrees |
| Measurement Type | Inch |
| Shank Type | HA |
| Series/List # | 1963A |
| Usable Length (LU) | 1/2″ |
| Cutting Direction (HAND) | Right Hand |
