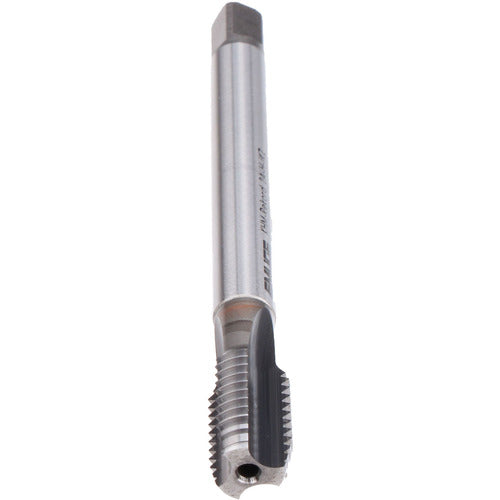

M10X1-TAP-REK A-H/SC-IKZ
Item #: ER4519509010276
Brand: EMUGE-FRANKEN
Model #: C1950901.0276
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M10 |
| Tool Type | Rekord A-H |
| Thread Pitch (TP) | 1 mm |
| Chamfer | 2P-3P |
| Thread Standard | Metric |
| Coating | Bright |
| Overall Length (OAL) | 90 mm |
| Flute Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 7 mm |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 0 Degrees |
| Coolant Supply Property (CSP) | Coolant Thru |
| Applicable Material | Cast Iron | Hard Materials |
| Measurement Type | Metric |
| Cutting Edge Material | Carbide |
| Series/List # | 1950901 |
| Thread Tolerance Class (TCTR) | 6HX |
| Thread Size | M10 × 1 |
| Standard | DIN |
