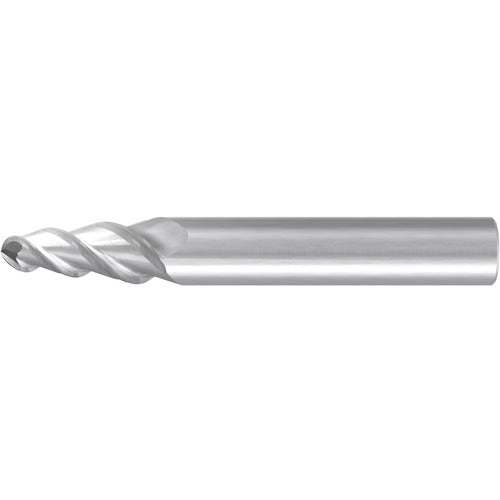

3441.06010B TAPERED EM
Item #: ER45344106010B
Brand: EMUGE-FRANKEN
Model #: 3441.06010B
| Product Specifications | |
|---|---|
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Body Half Taper Angle (BHTA) | 6 Degrees |
| Cutting Diameter (DC) | 4.85 mm |
| Coating | Polished |
| Depth of Cut Maximum (APMX) | 29 mm |
| Cutting Edge Material | Carbide |
| Flute Count (NOF) | 3 |
| Coolant Supply Property (CSP) | External |
| Corner Radius (RE) | 1 mm |
| End Shape | Ball Nose |
| Overall Length (OAL) | 72 mm |
| Shank Type | HA |
| Flute Helix Angle (FHA) | 45 Degrees |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Tool Type | Tapered |
