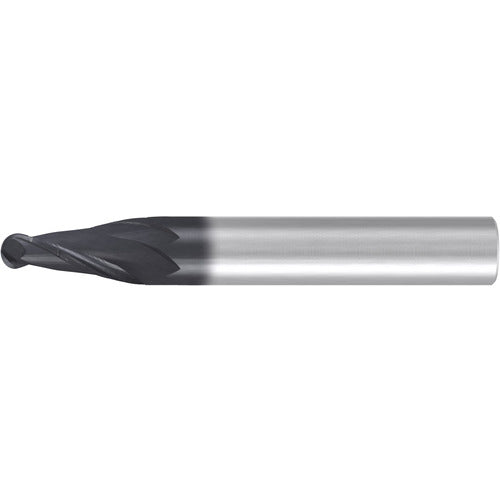

3446L.03020B BN TPR EM
Item #: ER453446L03020B
Brand: EMUGE-FRANKEN
Model #: 3446L.03020B
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5.42 mm |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 31 mm |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 |
| End Shape | Taper Ball Nose |
| Corner Radius (RE) | 2 mm |
| Shank Type | HA |
| Overall Length (OAL) | 80 mm |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees |
| Style | Finisher |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Tool Type | Taper Ball 3° |
| Body Half Taper Angle (BHTA) | 3 Degrees |
| Series/List # | 3446L |
| Coating | AlCr |
