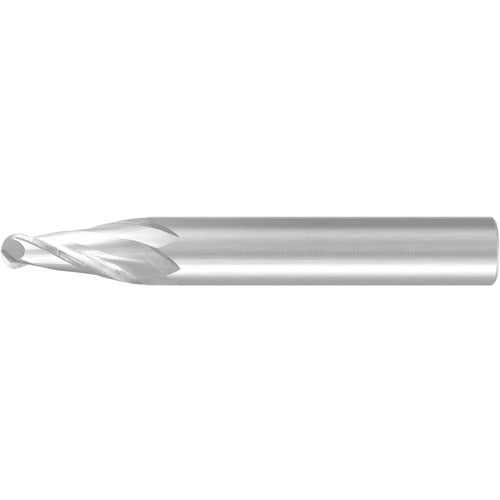

3447.06015A TAPERED EM
Item #: ER45344706015A
Brand: EMUGE-FRANKEN
Model #: 3447.06015A
| Product Specifications | |
|---|---|
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Coating | Polished |
| Cutting Diameter (DC) | 4.28 mm |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 15 mm |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 |
| End Shape | Ball Nose |
| Overall Length (OAL) | 62 mm |
| Shank Type | HA |
| Flute Helix Angle (FHA) | 30 Degrees |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Tool Type | Tapered |
| Body Half Taper Angle (BHTA) | 6 Degrees |
