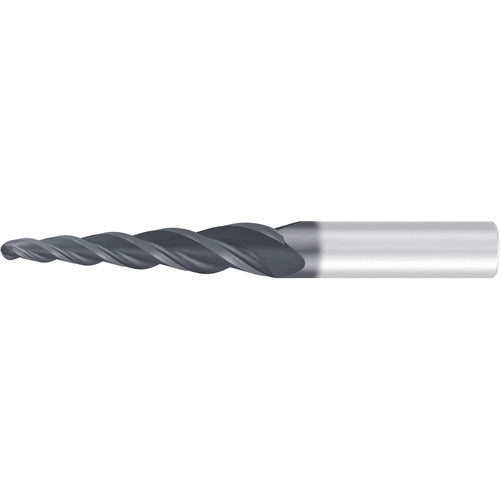

3550L.04020A BN TPR EM
Item #: ER453550L04020A
Brand: EMUGE-FRANKEN
Model #: 3550L.04020A
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 4 mm |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 59 mm |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 |
| End Shape | Taper Ball Nose |
| Corner Radius (RE) | 2 mm |
| Shank Type | HA |
| Overall Length (OAL) | 120 mm |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 34 Degrees | 35 Degrees | 36 Degrees |
| Style | Finisher |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Tool Type | Taper Ball 4° |
| Body Half Taper Angle (BHTA) | 4 Degrees |
| Series/List # | 3550L |
| Coating | AlCr |
